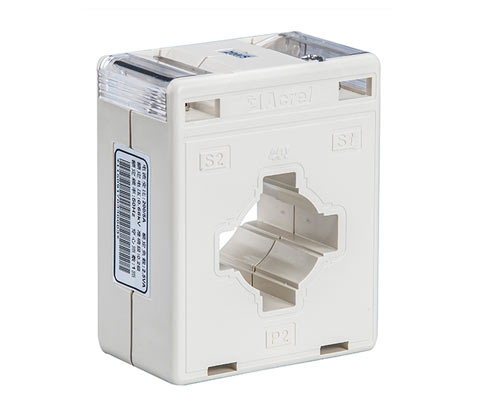

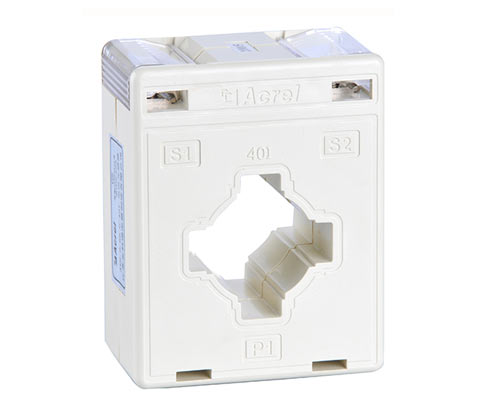

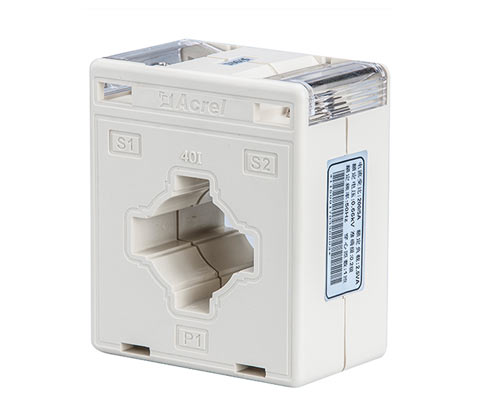

AKH-0.66测量型互感器
该系列互感器作为交流电流信号采集元件，可与测量仪表配套使用，一次电流测量范围5-6300A，二次输出5A或1A，测量范围为额定值的5-120%。
应用范围：
低压配电系统电流采集
|
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心 匝数 (匝) |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
||
|
0.2级 |
0.5级 |
1级 |
||||||
|
30I |
15/5(1) |
|
|
1.5 |
5 |
/ |
Φ22 |
A |
|
20/5(1) |
|
|
1.5 |
4 |
||||
|
25-30/5(1) |
|
|
1.5 |
3 |
||||
|
40-60/5(1) |
|
|
1.5 |
2 |
||||
|
75-100/5(1) |
|
|
1.5 |
1 |
30×10/1 |
AB |
||
|
150-200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500/5(1) |
|
10 |
|
1 |
||||
|
600/5(1) |
|
10 |
|
1 |
||||
|
40I |
10/5(1) |
|
|
1.5 |
8 |
/ |
Φ30 |
A |
|
15/5(1) |
|
|
1.5 |
5 |
||||
|
20/5(1) |
|
|
1.5 |
4 |
||||
|
25-30/5(1) |
|
|
1.5 |
3 |
||||
|
40-60/5(1) |
|
|
1.5 |
2 |
||||
|
75/5(1) |
|
|
1.5 |
1 |
40×10/1 |
AC |
||
|
100/5(1) |
|
|
1.5 |
1 |
||||
|
150/5(1) |
|
|
2.5 |
1 |
||||
|
200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000/5(1) |
10 |
|
|
1 |
||||
|
60I |
150/5(1) |
|
|
2.5 |
1 |
60×10/1 60×6/1-2 |
Φ44 |
AC |
|
200/5(1) |
|
2.5 |
|
1 |
||||
|
250/5(1) |
|
3.75 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000-1250/5(1) |
10 |
|
|
1 |
||||
|
1500-2000/5(1) |
20 |
|
|
1 |
||||
|
2500/5(1) |
30 |
|
|
1 |
||||
|
80I |
150/5（1） |
|
|
2.5 |
1 |
80×10/1 |
Φ50 |
AC |
|
200-250/5(1) |
|
2.5 |
|
1 |
||||
|
300-450/5(1) |
|
5 |
|
1 |
||||
|
500-800/5(1) |
|
10 |
|
1 |
||||
|
1000-1250/5(1) |
10 |
|
|
1 |
||||
|
1500-2000/5(1) |
20 |
|
|
1 |
||||
|
2500-3000/5(1) |
30 |
|
|
1 |
||||
|
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
||
|
0.2级 |
0.5级 |
1级 |
|||||
|
30II |
100/5(1) |
|
|
1.5 |
1 |
30x10/1-2 |
AC |
|
150/5(1) |
|
|
1.5 |
1 |
|||
|
200/5(1) |
|
2.5 |
|
1 |
|||
|
250/5(1) |
|
3.75 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-600/5(1) |
|
10 |
|
1 |
|||
|
40II |
100/5(1) |
|
|
1.5 |
1 |
40×10/ 1-2 |
AC |
|
150/5(1) |
|
|
2.5 |
1 |
|||
|
200/5(1) |
|
2.5 |
|
1 |
|||
|
250/5(1) |
|
3.75 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000/5(1) |
10 |
|
|
1 |
|||
|
50Ⅱ |
150 |
|
|
2.5 |
1 |
50×10/ 1-2 |
|
|
200-250/5(1) |
|
2.5 |
|
1 |
|||
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500/5(1) |
20 |
|
|
1 |
|||
|
60Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-2 |
C |
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500/5(1) |
30 |
|
|
1 |
|||
|
60×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-3 |
D
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500/5(1) |
30 |
|
|
1 |
|||
|
80Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-2 |
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
80×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-3 |
|
|
300-450/5(1) |
|
5 |
|
1 |
|||
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-2 |
|
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100×50Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-3 |
|
|
500-800/5(1) |
|
10 |
|
1 |
|||
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
|
1 |
|||
|
100×80Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
100×10/ 1-4 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-4000/5(1) |
30 |
|
|
1 |
|||
|
120×50Ⅱ |
500-800/5(1) |
|
10 |
|
1 |
120×10/ 1-3 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
130×50Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
125×10/1-3 130×10/1-3 60×10/2-6 |
|
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
120×80Ⅱ 150×50Ⅱ |
1000-1250/5(1) |
10 |
|
|
1 |
120×10/ 1-4 |
D |
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
170×100Ⅱ |
1500-2000/5(1) |
15 |
|
|
1 |
170×10/1-3 100×10/3-6 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
180×50Ⅱ |
1200-2000/5(1) |
10 |
|
|
1 |
180×10/1-3 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
200×50Ⅱ 220×50Ⅱ 260×50Ⅱ |
1500-2000/5(1) |
20 |
|
|
1 |
200×10/1-3 100×10/4-6 |
|
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
|
260×100Ⅱ |
1200-1500/5(1) |
10 |
|
|
1 |
250×10/2-5 125×10/4-10 |
|
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
|
2500-6300/5(1) |
30 |
|
|
1 |
|||
|
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
|
|
0.2级 |
0.5级 |
|||||
|
60Ⅲ |
200-300/5(1) |
|
2.5 |
1 |
60×10/ 1-3 |
E |
|
400/5(1) |
|
5 |
1 |
|||
|
500-800/5(1) |
|
10 |
1 |
|||
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500/5(1) |
30 |
|
1 |
|||
|
80Ⅲ |
300-400/5(1) |
|
5 |
1 |
80×10/ 1-3 |
|
|
500-800/5(1) |
|
10 |
1 |
|||
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500-3000/5(1) |
30 |
|
1 |
|||
|
100Ⅲ |
600-800/5(1) |
|
10 |
1 |
100×10/ 1-3 |
|
|
1000/5(1) |
10 |
|
1 |
|||
|
1200-1500/5(1) |
15 |
|
1 |
|||
|
2000/5(1) |
20 |
|
1 |
|||
|
2500-5000/5(1) |
30 |
|
1 |
|||
|
130Ⅲ |
2000/5(1) |
20 |
|
1 |
130×10/1-3 125×10/1-3 |
|
|
2500-5000/5(1) |
30 |
|
1 |
|||
|
规格 |
额定电 流比 |
准确级 |
穿心 匝数 |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
|
0.2级 |
||||||
|
Z-10 |
50A/25mA |
10Ω |
|
1 |
Φ10 |
导轨式 |
|
规格 |
额定电 流比 |
准确级及相应额定负荷 |
穿心 匝数 |
电缆最大 外径(mm) |
|
0.2级 |
||||
|
Z-15 |
100A/20mA |
10Ω |
1 |
Φ15 |
|
规格 |
额定电流比 |
准确级及相应额定负荷（VA/Ω） |
电缆最大外径(mm) |
|
|
0.5级 |
1级 |
|||
|
Z-3×Φ20 |
5-100/5A |
|
1.5VA |
Φ20 |
|
150/5A |
1.5VA |
|
||
|
200/5A |
2.5VA |
|
||
|
5-100/1A |
|
1.5Ω |
||
|
150/1A |
1.5Ω |
|
||
|
200/1A |
2.5Ω |
|
||
|
5-200A/50mA |
0.5VA |
|
||
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
|
0.2级 |
0.5级 |
1级 |
||||
|
W-7 |
5-15/5mA |
10 |
|
|
1 |
Φ7 |
|
10-30/10mA |
10 |
|
|
1 |
||
|
5/20mA |
|
10 |
|
2 |
||
|
10-15/20mA |
|
10 |
|
1 |
||
|
20-60/20mA |
10 |
|
|
1 |
||
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
|
0.2级 |
0.5级 |
1级 |
||||
|
W-8 |
5-15/5mA |
10 |
|
|
1 |
Φ8 |
|
10-30/10mA |
10 |
|
|
1 |
||
|
5/20mA |
|
10 |
|
2 |
||
|
10-15/20mA |
|
10 |
|
1 |
||
|
20-60/20mA |
10 |
|
|
1 |
||
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
|
0.2级 |
0.5级 |
1级 |
||||
|
W-12 |
5/20mA |
|
10 |
|
4 |
Φ12 |
|
10-15/20mA |
|
10 |
|
2 |
||
|
20/20mA |
|
10 |
|
1 |
||
|
30-100/20mA |
10 |
|
|
1 |
||
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
|
0.2级 |
0.5级 |
1级 |
||||
|
W-20 |
5/20mA |
|
10 |
|
4 |
Φ20 |
|
10-15/20mA |
|
10 |
|
2 |
||
|
20/20mA |
|
10 |
|
1 |
||
|
30-200/20mA |
10 |
|
|
1 |
||
|
规格 |
额定电 流比 |
准确级及相应额定负荷(Ω) |
耐压 |
开路电压 |
环境温度℃ |
安装方式 |
||
|
0.2级 |
0.5级 |
1级 |
||||||
|
EMS |
50A/10mA |
10 |
|
|
3kV |
≤7.8V |
-20℃~70℃ |
导轨 |
